DSP INTEGRATED HIGH POWER AMPLIFIER FOR REAL SOUND QUALITY
Feelart's super DSP integrated Amplifer 16 CH
▪ DSP: 4-core Hi-Res audio source hardware decoding chip, computing power reaches 295 MHz.
▪ ADC: Hi-end; Digital to analog AD conversion chip, low distortion, better signal-to-noise ratio, larger dynamic range.
▪ DAC: Hi-end; High-end Class DA conversion chip, perfect sound playback effect.
▪ Input EQ: 10-band, Output EQ: 31-band, per channel with fine adjustment of each EQ band, time alignment in 0.28"/7mm steps, other filtering characteristics each other with 6 to 48dB slope, phase control, etc
Technical Data

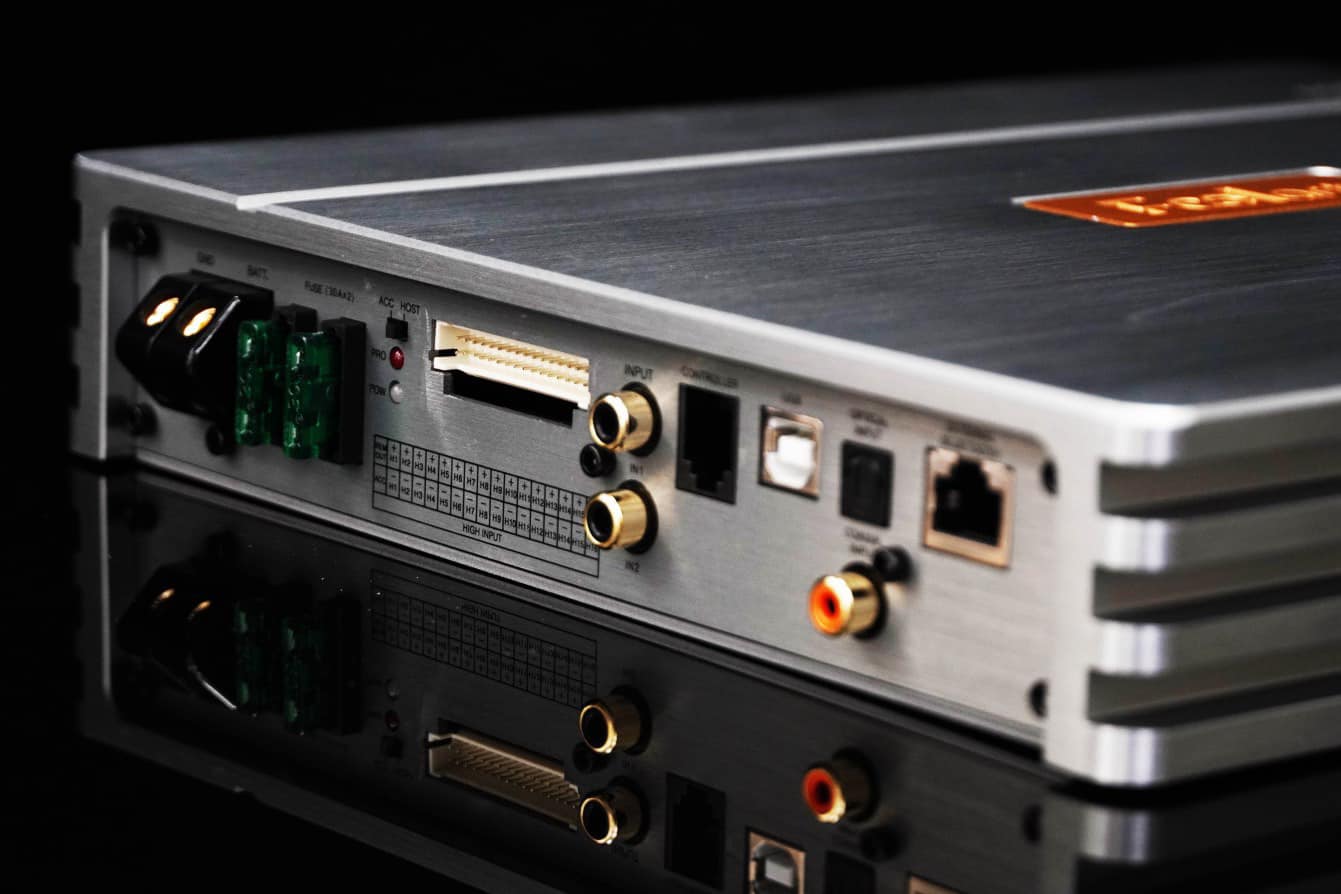

Inputs: •16 x Highlevel
•2 x RCAs
•1 x Optical fiber
•1 x coaxial digital
•1 x Bluetooth
Outputs: •8 x RCA
•8 x 50W
•4 x 120W
•4 x 200W
- Frequency response: 20-20kHz
- EQ (Per channel): •Input:10-Band
- •Output:31-Band
- DSP resolution: •295 MHz/96 KHz/32 Bit
- Signal converters: • A/D:AK5704(96KHz/32Bit)
- • D/A:AK4438(96KHz/32Bit)
- Signal-to-noise ratio: • 105dB(digital input)
- 100dB(analog input)
- Distortion(THD+N): • ≤0.05%
- Power supply: • 9-16 V
- Dimensions(L x W x H): 288 x 248 x 48 mm
